VORTEX OPTICS Pro Series 30MM Riflescope Rings - Medium Height

The finishing touch to your rifle and optic combination. Pro Series rings combine rock-solid reliability and strength with high quality machining to ensure ultimate accuracy and consistency. Streamlined, lightweight and durable, these rings use four T-25 Torx-style socket cap screws for secure mounting.

Type 2 Matte Black Anodized
Laser Engraved Torque Specifications
Integrated Recoil Lug
Made in the USA

TORQUE SPECS

Base Clamp Screws	30 in/lbs
Ring Screws	18 in/lbs
Height	Medium - 1.00" / 25.40mm

Installation Instructions

1. Remove the upper ring halves (keeping them paired as packaged) and place aside.

2. Loosen the base screws and ﬁt the lower halves onto a Weaver or Picatinny base.

3. Position to allow proper riﬂescope placement for eye relief and even spacing on the riﬂescope tube.

4. Individually tighten both base clamp screws while pressing the ring half down and forward, toward the muzzle, ensuring it is seated against a cross-slot in the rail. Tighten base clamp screws to 30 in-lbs.

5. Place the riﬂescope onto the lower ring halves and loosely reattach the upper ring halves to the lower ring halves.

6. Slide and rotate the riﬂescope for proper head position, eye relief, and vertical reticle alignment.

7. With the riﬂescope properly positioned, alternately tighten the ring screws in a crisscross pattern. Tighten screws to 15-18 in-lbs while maintaining even spacing between the ring halves.

Note: Do not apply thread locker to the screws. Thread locking agents lubricate the threads, which can increase the applied torque.

ATTENTION: To properly mount your riﬂescope we highly recommend using an inch-pound torque wrench. DO NOT exceed 18 in-lbs of torque on the ring’s screws.

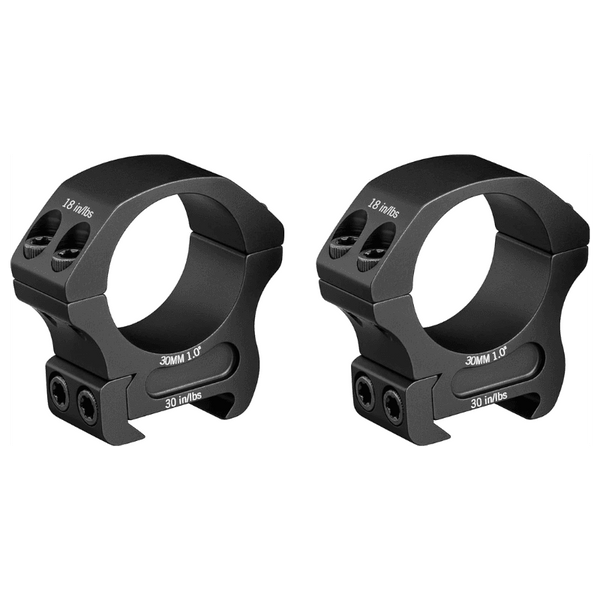

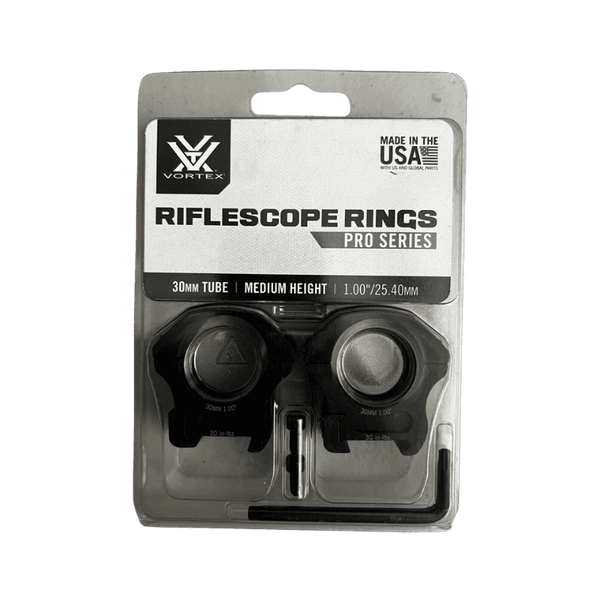

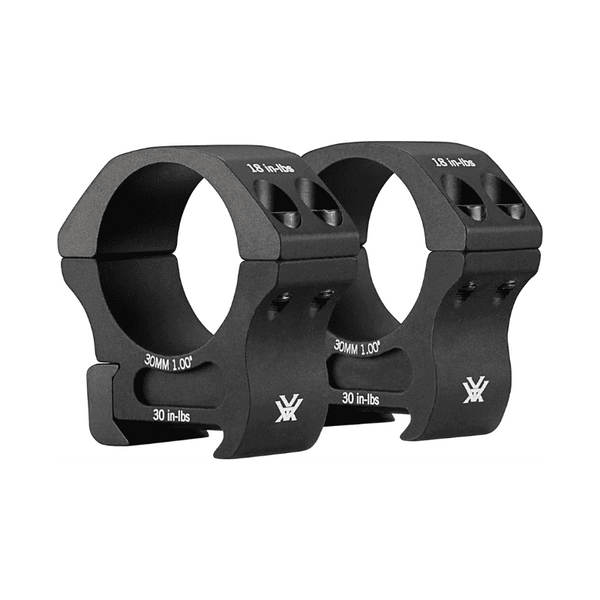

Vortex Pro Series Medium Ring Set
